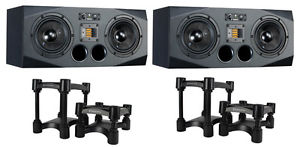

ADAM A77X Active Studio Monitoring Bundle (NEW)
Estimated price for orientation: 1 449 $
Category: Speakers and Monitors
Class:
Description Condition: New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. See all condition definitions- opens in a new window or tab ... Read moreabout the condition Sub-Type: Active Type: Studio Monitors RMS Power: 250 W MPN: adaa77xpairbundle Bundled Items: Stand Model: A77X Features: 3-Way Configuration, Full Range Configuration, Input Gain Control Brand: Adam Active/Passive: Active EAN: Does not apply
The ideal solution for project and professional studio monitoring, featuring ADAM’s twin-7 inch driver monitors, the ADAM A7X, plus a pair of Isoacoustics sound isolating desktop speaker stands that ensure you get the most out of your monitor setup.ADAM A77X Studio Monitoring Bundle Main Features X-ART ribbon tweeter technology for extended frequency response Twin 7 Inch carbon fibre MF/LF drivers Horizontal design Two sets of Isoacoustics acoustic isolating monitor stands
Package consists of: 1 x ADAM A77X Active Studio Monitor (Speaker A) 1 x ADAM A77X Active Studio Monitor (Speaker B) 2 x IsoAcoustics ISO-L8R155 Desktop Monitor Stands (Pair) 2 x Lynx PRL3M 3 metre balanced jack to Male XLR cable
ADAM A77X Active Studio MonitorsIn some set-ups it can be advisable to use a horizontally designed speaker rather than a vertical one. Until now, such monitors were only available within the SX top line.The brand new ADAM A77X, due to its outstanding features, might become a true game changer. Equipped with the same advanced technologies as the A7X, it is very similar to the two-way speaker. The A77X, however, distinguishes itself by much higher, compression-free maximum sound pressure levels and dynamics. Due to its power and radiation characteristics, it also is perfectly suited for both near- and midfield monitoring.Driver technology
Like all models of the AX series, the A77X features the ADAM proprietary X-ART tweeter. The 'X' stands for 'eXtended frequency response' and that is one of the features of the Accelerating Ribbon Technology that has been drastically improved: the frequency response. It now extends all the way up to 50kHz. In addition, the X-ART tweeter has higher efficiency and higher maximum sound pressure levels.The two 7 inch woofers are identical with that of the A7X. With their large voice coils (1.5 inch) and powerful amplifiers they are capable of both very high maximum sound pressure levels as well as very deep registers. The woofers do not cover the same frequency bands: while one of them is responsible for the (sub-) bass frequencies up to about 400Hz, the other takes over most of the midrange.Amplifiers / controls
Each driver has its own dedicated amplifier. A 50W A/B amp is responsible for the X-ART tweeter, while the bass-/midwoofers are driven by a 100W PWM amp each. The front panel includes a power switch and a control for the volume that retains the volume setting independently from the on/off switch.The rear panel features several additional controls: a gain for the high frequencies (± 4dB) and two shelf filters for high and low frequencies. To ensure greater compatibility, there are both XLR (balanced) and RCA (unbalanced) connectors.ADAM A77X Specifications LF Driver: 7 inch with 1.5 inch Voice coil (x 2) HF Driver: X-ART Ribbon Amplifers: 2 x LF 100W RMS / HF 50W RMS Connectors: XLR balanced / RCA unbalanced Frequency Response: 38 Hz - 50 kHz Crossover frequencies: 400 / 3000 Hz Weight: 28.2 lb / 12.8 kg (each) Dimensions (H x W x D): 235 x 530 x 280 / 9.5 x 21 x 11 inches (each)IsoAcoustics ISO-L8R155 Desktop Monitor Stands (Pair)
IsoAcoustic's unique patented design provides superior audio performance by supporting the PIF Principles in acoustic design.Placement – proximity to adjacent and nearby surfaces. ISO-L8R155 audio stands raise the audio speakers or studio monitors off the supporting surface and away from adjacent surfaces to reduce reflections.Isolation – from supporting surfaces. Decoupling the audio speakers or studio monitors from the supporting surface reduces the energy from exciting other objects, and allows the speake
Description
| Condition: | New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. See all condition definitions- opens in a new window or tab ... Read moreabout the condition | Sub-Type: | Active |
| Type: | Studio Monitors | RMS Power: | 250 W |
| MPN: | adaa77xpairbundle | Bundled Items: | Stand |
| Model: | A77X | Features: | 3-Way Configuration, Full Range Configuration, Input Gain Control |
| Brand: | Adam | Active/Passive: | Active |
| EAN: | Does not apply |
The ideal solution for project and professional studio monitoring, featuring ADAM’s twin-7 inch driver monitors, the ADAM A7X, plus a pair of Isoacoustics sound isolating desktop speaker stands that ensure you get the most out of your monitor setup.ADAM A77X Studio Monitoring Bundle Main Features X-ART ribbon tweeter technology for extended frequency response Twin 7 Inch carbon fibre MF/LF drivers Horizontal design Two sets of Isoacoustics acoustic isolating monitor stands
Package consists of: 1 x ADAM A77X Active Studio Monitor (Speaker A) 1 x ADAM A77X Active Studio Monitor (Speaker B) 2 x IsoAcoustics ISO-L8R155 Desktop Monitor Stands (Pair) 2 x Lynx PRL3M 3 metre balanced jack to Male XLR cable
ADAM A77X Active Studio MonitorsIn some set-ups it can be advisable to use a horizontally designed speaker rather than a vertical one. Until now, such monitors were only available within the SX top line.The brand new ADAM A77X, due to its outstanding features, might become a true game changer. Equipped with the same advanced technologies as the A7X, it is very similar to the two-way speaker. The A77X, however, distinguishes itself by much higher, compression-free maximum sound pressure levels and dynamics. Due to its power and radiation characteristics, it also is perfectly suited for both near- and midfield monitoring.Driver technology
Like all models of the AX series, the A77X features the ADAM proprietary X-ART tweeter. The 'X' stands for 'eXtended frequency response' and that is one of the features of the Accelerating Ribbon Technology that has been drastically improved: the frequency response. It now extends all the way up to 50kHz. In addition, the X-ART tweeter has higher efficiency and higher maximum sound pressure levels.The two 7 inch woofers are identical with that of the A7X. With their large voice coils (1.5 inch) and powerful amplifiers they are capable of both very high maximum sound pressure levels as well as very deep registers. The woofers do not cover the same frequency bands: while one of them is responsible for the (sub-) bass frequencies up to about 400Hz, the other takes over most of the midrange.Amplifiers / controls
Each driver has its own dedicated amplifier. A 50W A/B amp is responsible for the X-ART tweeter, while the bass-/midwoofers are driven by a 100W PWM amp each. The front panel includes a power switch and a control for the volume that retains the volume setting independently from the on/off switch.The rear panel features several additional controls: a gain for the high frequencies (± 4dB) and two shelf filters for high and low frequencies. To ensure greater compatibility, there are both XLR (balanced) and RCA (unbalanced) connectors.ADAM A77X Specifications LF Driver: 7 inch with 1.5 inch Voice coil (x 2) HF Driver: X-ART Ribbon Amplifers: 2 x LF 100W RMS / HF 50W RMS Connectors: XLR balanced / RCA unbalanced Frequency Response: 38 Hz - 50 kHz Crossover frequencies: 400 / 3000 Hz Weight: 28.2 lb / 12.8 kg (each) Dimensions (H x W x D): 235 x 530 x 280 / 9.5 x 21 x 11 inches (each)IsoAcoustics ISO-L8R155 Desktop Monitor Stands (Pair)
IsoAcoustic's unique patented design provides superior audio performance by supporting the PIF Principles in acoustic design.Placement – proximity to adjacent and nearby surfaces. ISO-L8R155 audio stands raise the audio speakers or studio monitors off the supporting surface and away from adjacent surfaces to reduce reflections.Isolation – from supporting surfaces. Decoupling the audio speakers or studio monitors from the supporting surface reduces the energy from exciting other objects, and allows the speake
